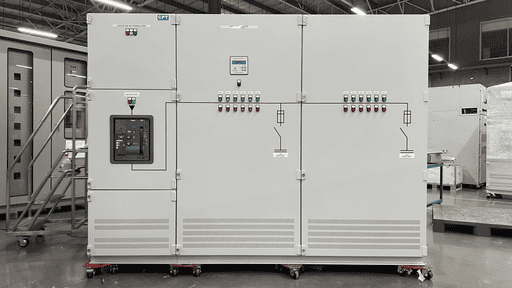

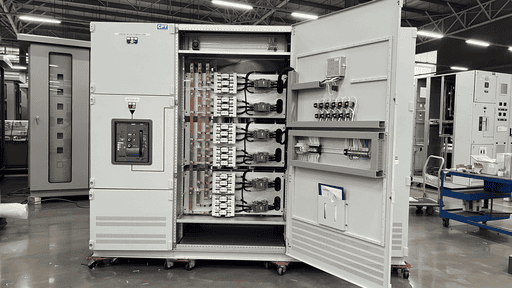

LV Shunt Capacitor Banks Products

  • Main power equipment
    • Main copper busbar
    • Main circuit-breaker/Fuse switch/Switch disconnector and Earthing switch
    • Power capacitor units with low losses
    • Detuning reactor 5.6%, 6%, 7%, 12.5%, 13%, 14%
    • HRC Power Fuses/Mold case circuit breaker
    • Magnetic contactor for capacitor switching
  • Optional available
    • Power factor controller with communication and Automatic/Manual modes
    • Safety interlocking scheme
    • Overload protection
    • Substation Communication System with IEC 61850
    • Fuse failure indication normal/trip
    • Auxiliary voltage transformer for 400/230Vac supply
    • Top and bottom power cable entry
    • Redundancy for ventilation forced air cooling
    • Analogue & Digital metering device
    • Overheating protection at detuned reactor by thermostat
  • Standards compliance
    • IEC 60831-1 & 2
    • IEC 61921
