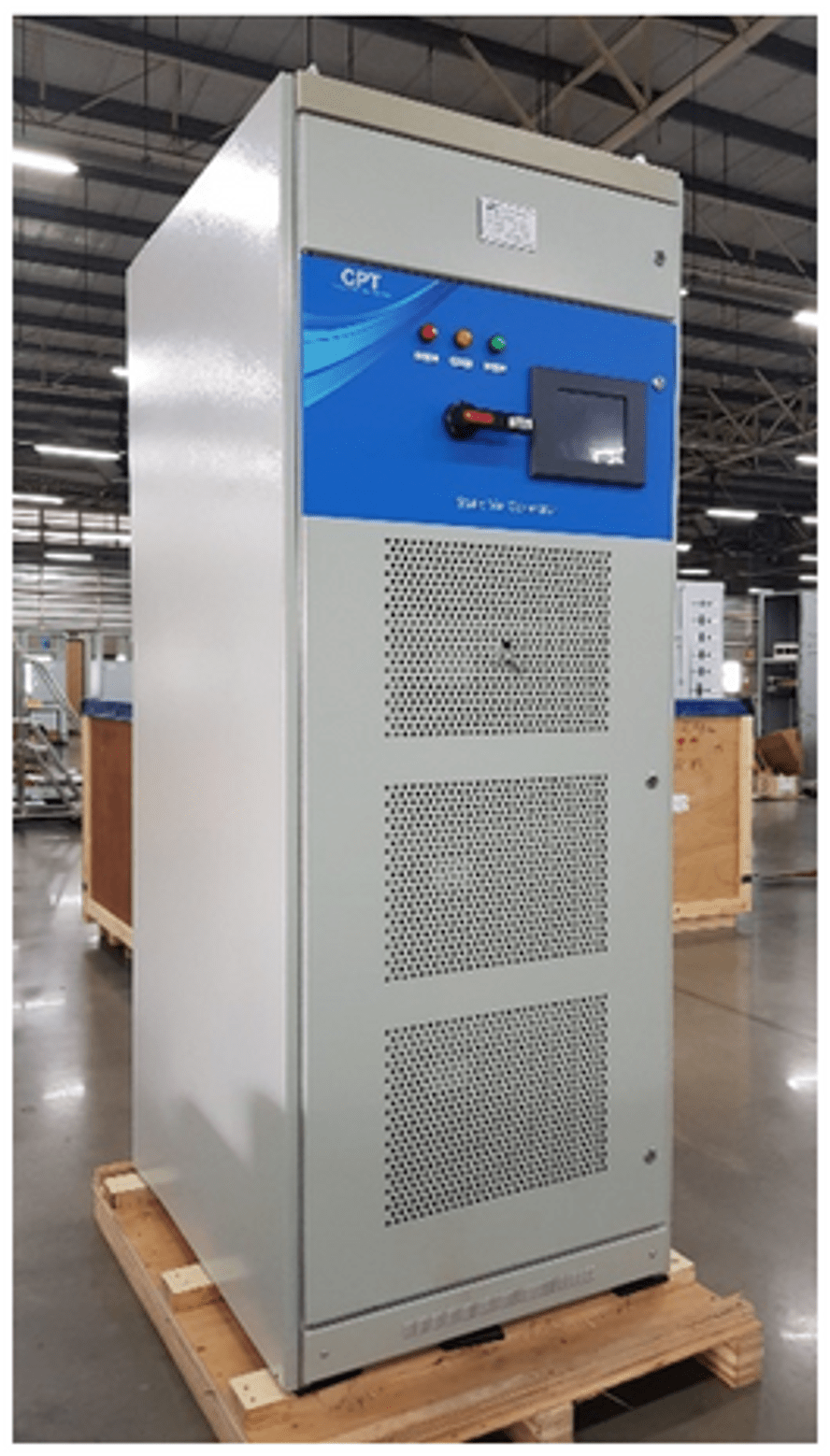

Static Var Generator (SVG/STATCOM) Products

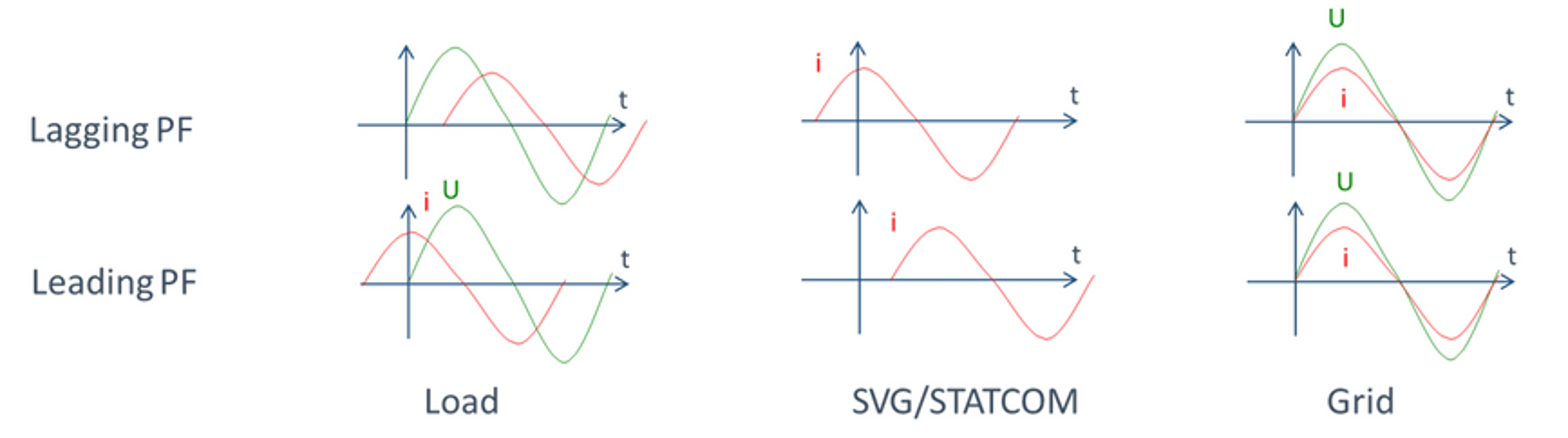

SVG works as a current source, which alerts the power factor of the grid with the reactive current generated by itself. SVG by CPT will check the load current through the external CT, and performs computing through the external DSP to analyze the reactive content of the load current. After that, it controls the PWM signal generator based on the settings to send control signals to the internal IGBT. In this way, it generates reactive compensation current to implement dynamic reactive power compensation.

CPT offers the SVG/STATCOM for both LV and MV voltage levels.

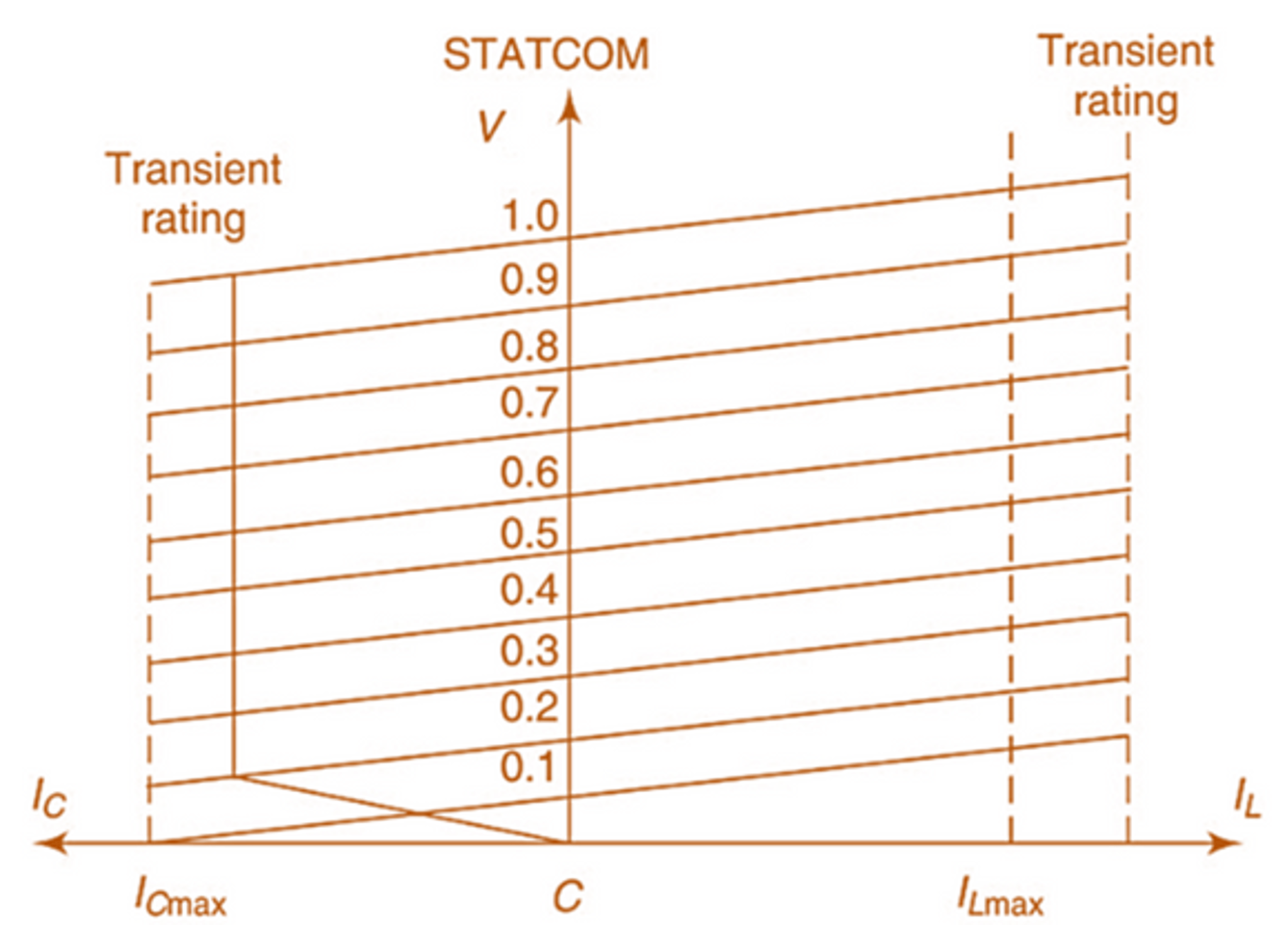

Voltage Regulation Mode and Var Control Mode (V-I Characteristic)

• The working range or operating area of STATCOM is limited only by the maximum voltage and current ratings of the converter.
• A STATCOM provides smooth voltage control over a wide range of operating conditions, has high dynamic and very fast response time, and always provides the maximum reactive current at any value of voltage.

• Product Features, Benefits and Functions
  • Voltage ranges available from 220 Vac to 33 kVac
  • Indoor and outdoor installation
  • Equipped with all switching devices, relay protection and control schematic diagram
  • Power factor control with auto/manual modes
  • Surge arrester, Switch-disconnector and Earthing switch for safety reasons are optional.
  • System study and summarize in a written report
  • Harmonic analysis results
  • Voltage rise calculations based on energization of filter/capacitor bank stages
  • Free-standing cubicle
  • Bottom or Top cable entry
  • Index of protection degree as IP 21 or upon request
  • Multiple combination by SVG+AHF for compensation or SVG+SVC for reactive power compensation
• Technical characteristic
  • Cooling method by Forced air cooling, water cooling
  • Selection of harmonics up to the 50th harmonic
  • Line filtering current rating, Industrial cabinet design
  • Load balancing and Reactive power compensation
  • Reactive power compensation: COSφ=0.99
  • Three-phase unbalance compensation
  • Capacitive and inductive compensation: -1 to +1
  • The complete response time of SVG is less than 15 ms, and the dynamic response time is less than 50 μs, making SVG a top
  • Free of over-compensation, under-compensation, and harmonic resonance. The compensation capacity is equal to the installed capacity and is not affected by voltage drop.
