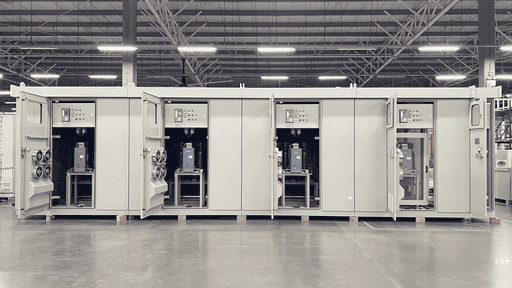

MV & HV Shunt Capacitor Banks Products
- Product Features, Benefits and Functions
- Modular, compact and robust design optimized for easy future expansion of the system, facilitating transport, storage and installation
- Galvanized steel enclosures available for indoor and outdoor installations, with ventilation system
- Voltage ranges up to 115 kV
- Up to 30 Mvar output (5Mvar/stage) for Enclosure
- Up to 58 Mvar output for Open Air
- Fixed or switched
- The equipment has been designed, manufactured and tested in accordance with the requirements of the following standards and recommendations
- Many types of capacitor unit technology
- Internally fused, Externally fused
- Fuseless, Unfused
- Variety of unbalance protection scheme
- Double-Wye ungrounded with CT protection
- Single-Wye grounded with VT protection
- Main equipment
- Main copper busbar with insulator support
- Main incomer circuit-breaker/ Switch disconnector and Earthing switch
- Power capacitor units with low losses
- Current limiting reactor (inrush reactor)
- Detuning reactor 5.6%, 6%, 7%
- Available for tuned filter reactor
- HV HRC Power Fuses
- Vacuum contactor for capacitor switching
- Anti-condensation heaters
- Ventilation cooling fans
- Thermostat/Hygrostat control
- Optional available
- Power factor controller with communication and Automatic/Manual modes
- Safety interlocking scheme
- Unbalance protection (60C)
- Over Current/Earth Fault protection (50/51)
- Over/Under Voltage protection (50N/51N)
- Overload protection (51C)
- Over Temperature protection
- Over Pressure protection
- Fuse failure indication, normal/trip
- Local/Remote selector switch
- Protection Circuit Breakers
- Surge Arresters
- Quick Discharge Voltage Transformers
- Substation Communication System with IEC 61850
- Auxiliary Voltage Transformers
- Live line indicator
- Standards compliance
- IEC 60871, IEEE Std. 1036
